Flood4cast

Sudden flooding in urban areas is increasingly becoming a major challenge for emergency services.

The Antwerp Fire and Rescue Service aims to further improve the deployment of its intervention teams in the event of sudden flash floods in places where they are needed the most, and even to conduct preventive on-the-spot visits to bring in sandbags and assist residents.

In 2018, the Antwerp Fire Brigade rolled out the Flood4Cast® pilot project. Different expertises were involved in the project: HydroScan worked together with Imec and Vito.

The objective: To predict imminent floods at street level in order to optimally align the deployment of intervention teams with places where they are needed the most.

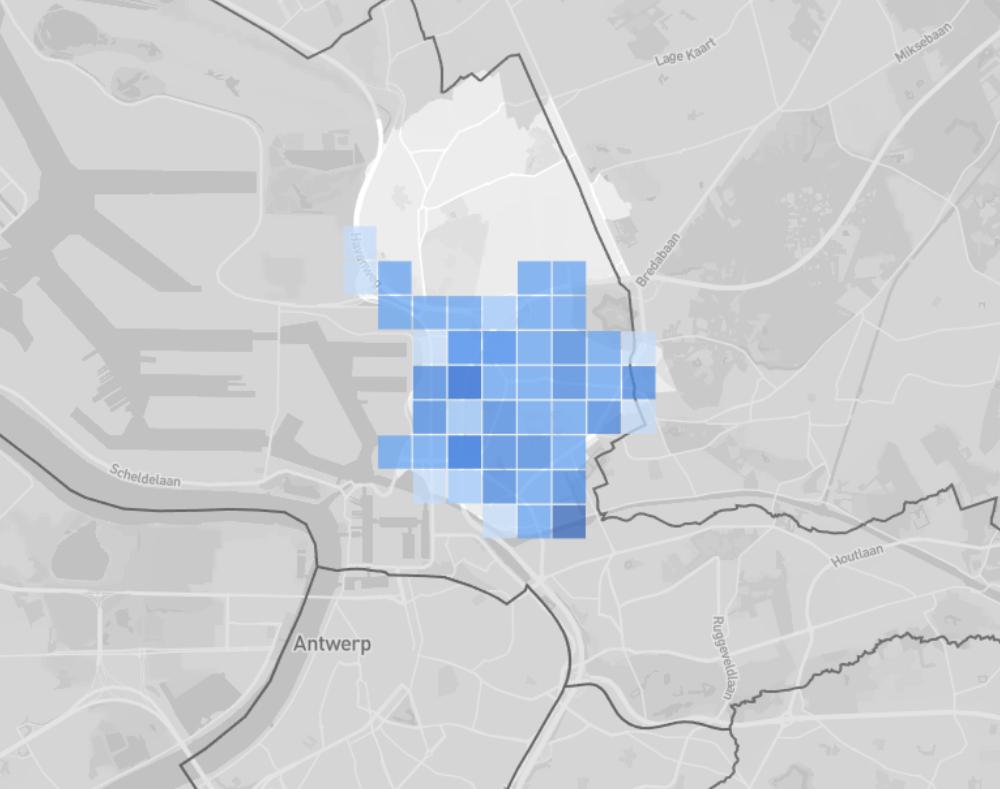

Flood forecast map at city/municipality level

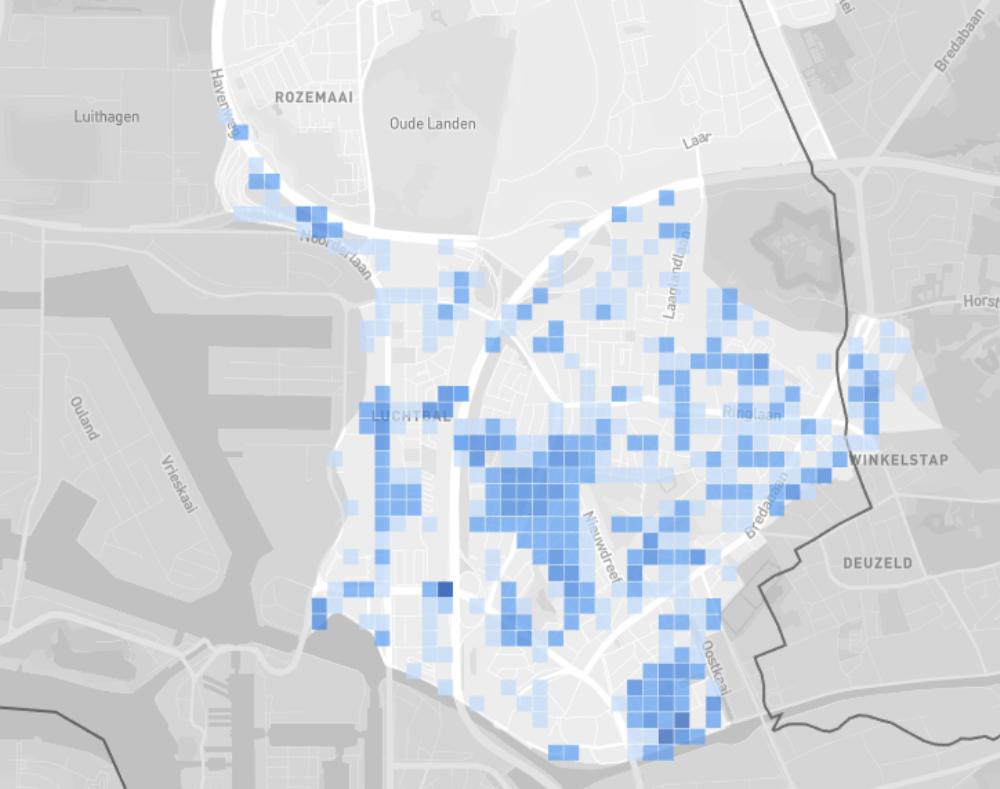

Flood forecast map at city district level

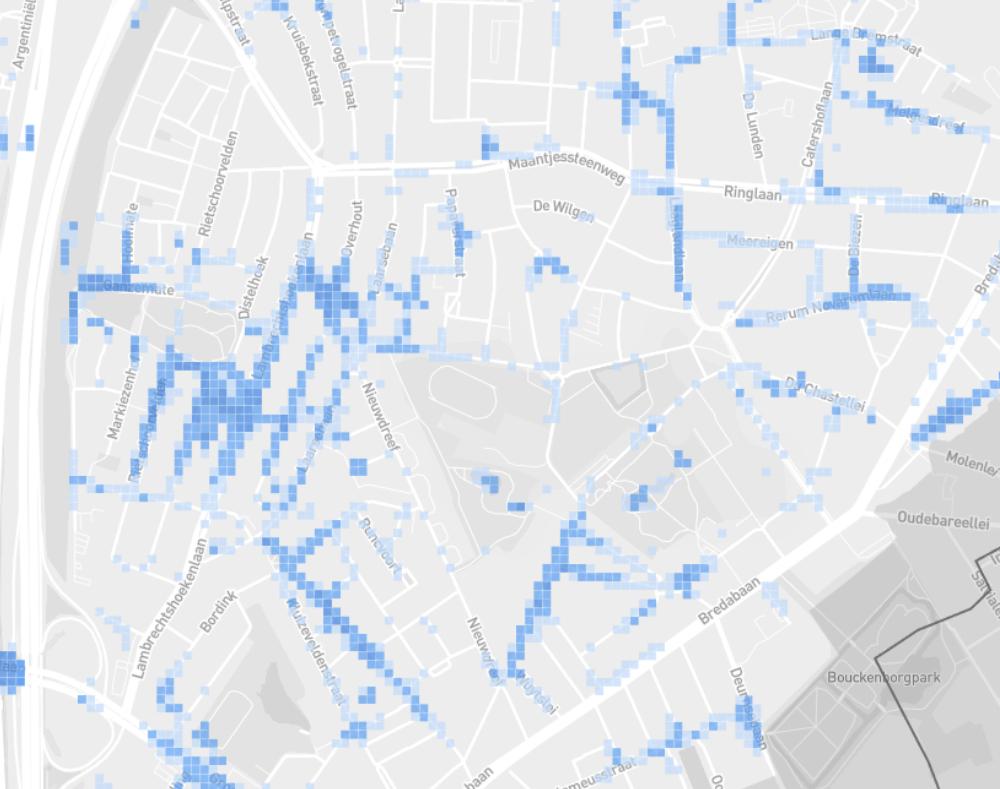

Flood forecast map at street level

Images from IMEC viewer.

The following approach was developed in collaboration with all partners. The pilot project took place in the Ekeren and Merksem area:

Local sewers and watercourses were carefully mapped
High precision sensors and rain gauges are installed at 14 strategic locations (sewers and open watercourses)
Objective: to predict precipitation levels and water levels in real time
These real-time precipitation measurements are combined with data from rainfall radars of different weather stations
Available flood maps are incorporated into the algorithm
The HydroScan Flood4Cast® algorithm combines and translates this pile of information into real time into forecasts of flood risk at street level, up to two to three hours in advance
The forecast is updated every five minutes
Partners Imec and Vito ensure the visual mapping of all the information within a Decision Support System
An automatic alerting system is in place

The Antwerp Fire and Rescue Service validated the model based, among other data, on the heavy flood of 5 September 2018 when the Ekeren and Merksem region was hit in the evening by an extreme local cloudburst. The model was found to be able to accurately predict the floods that occurred then. The interventions would have been planned differently and better if this information had been available.

Forecasts of flood risk down at street level enable the fire brigade to make better decisions and take proactive action:

Further improve the deployment of intervention teams where they are needed the most
Conduct preventive on-the-spot visits to bring in sandbags and assist residents
Timely notify residents of potential flooding
